LS150-4 filber laser cutting machine
- max capacity : OD20~150 mm
- max loading length @6000 mm
- min material waste (rear end) @45 mm
- 5 servo axes synchronization

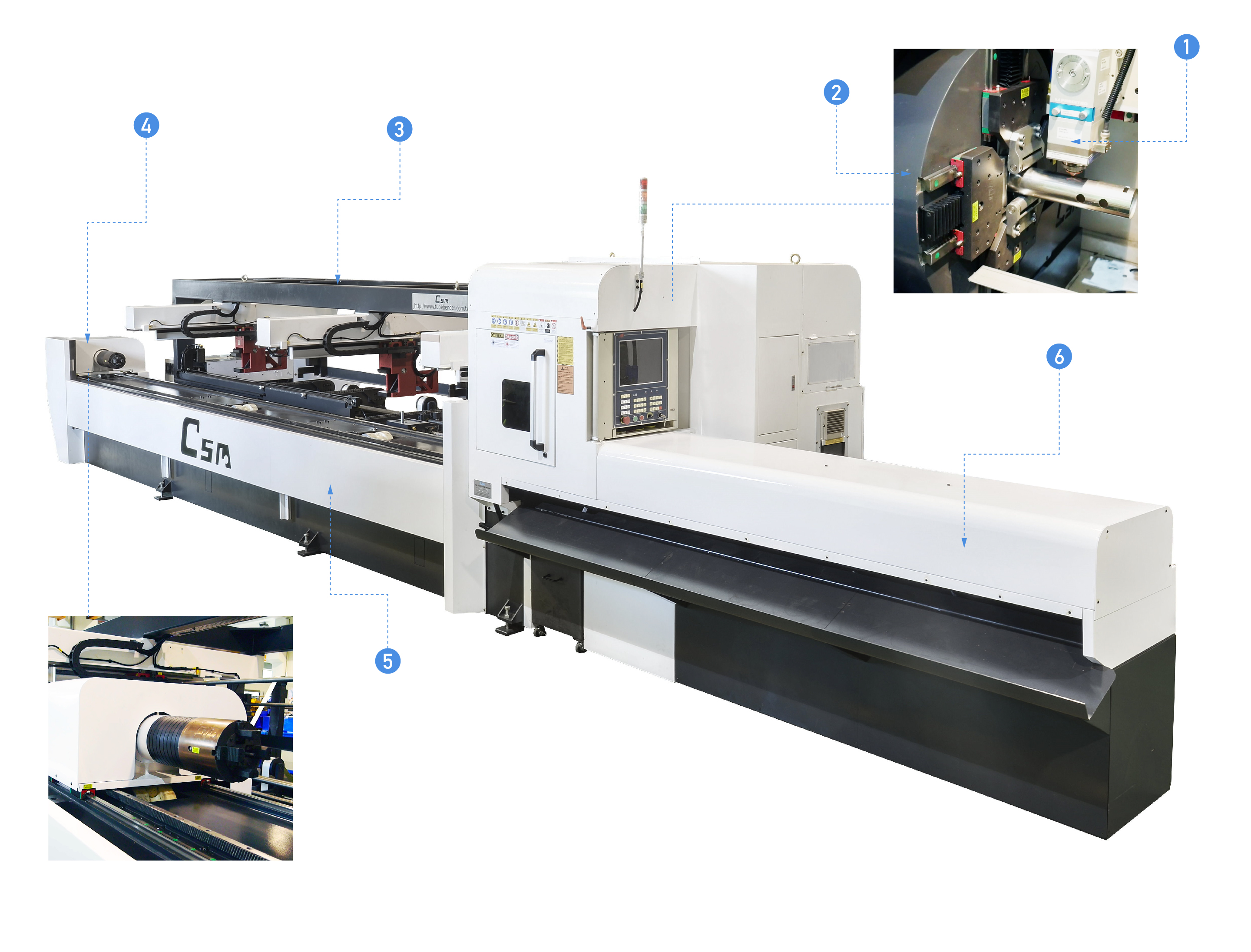

1.fiber laser head :
- automatic calibration
- plain & upright motion by servo drive with speed @500 mm/sec
- capable of cutting circular、square、rectangular、elliptic and flat oval tube
- positioning repeatability ±0.03 mm
2.front chuck :
- exclusive design with international patent rotation by servo drive
- clamping by pneumatic
- coupling design, optimized for clamping either circular or rectangular/square/elliptic/flat oval tube
3.tube loader facilitates job scheduling and applicable to tube with different shape and OD
4.carriage :
- feeding by servo drive with speed @777 mm/sec and max working distance @6700 mm
- rear chuck with exclusive design and international patent
- rotation by servo drive
- clamping by pneumatic
- coupling design,optimized for clamping either circular or rectangular/square/elliptic/flat oval tube
5.safety barrier driven by pneumatic, ensures safety in addition to easy access for maintenance
6.customized unloader adapting to tube with variable shape and OD
|
Specification |
Unit |
LS208-4 |
LS150-4 |
|
max raw tube loading length |
mm |
6000 |
6000 |
|
min materical waste length |
mm |
140 |
45 |
|
X-axis working distance/laser head plain motion |
mm |
220 |
200 |
|
X-axis speed |
mm/sec |
500 |
500 |
|
Y-axis working distance/carriage feeding |
mm |
6600 |
6700 |
|
Y-axis speed |
mm/sec |
834 |
777 |
|
Z-axis working distance/laser head upright motion |
mm |
150 |
110 |
|
Z-axis speed |
mm/sec |
500 |
500 |
|
B & B1-axis speed/front & rear chuck |
degree/sec |
375 |
450 |
|
max cutting capacity / OD |
mm |
20~208 |
20~150 |
|
positioning repeatability |
mm |
±0.03 |
±0.03 |
|
machine dimension (length x width x height) |
mm |
10500x1800x2400 |
11000x1800x2100 |
|
Laser generator |
fiber |
fiber |
|
|
max laser power |
(alternative) |
1000W 1500W 2000W 3000W |
1000W 1500W 2000W |
