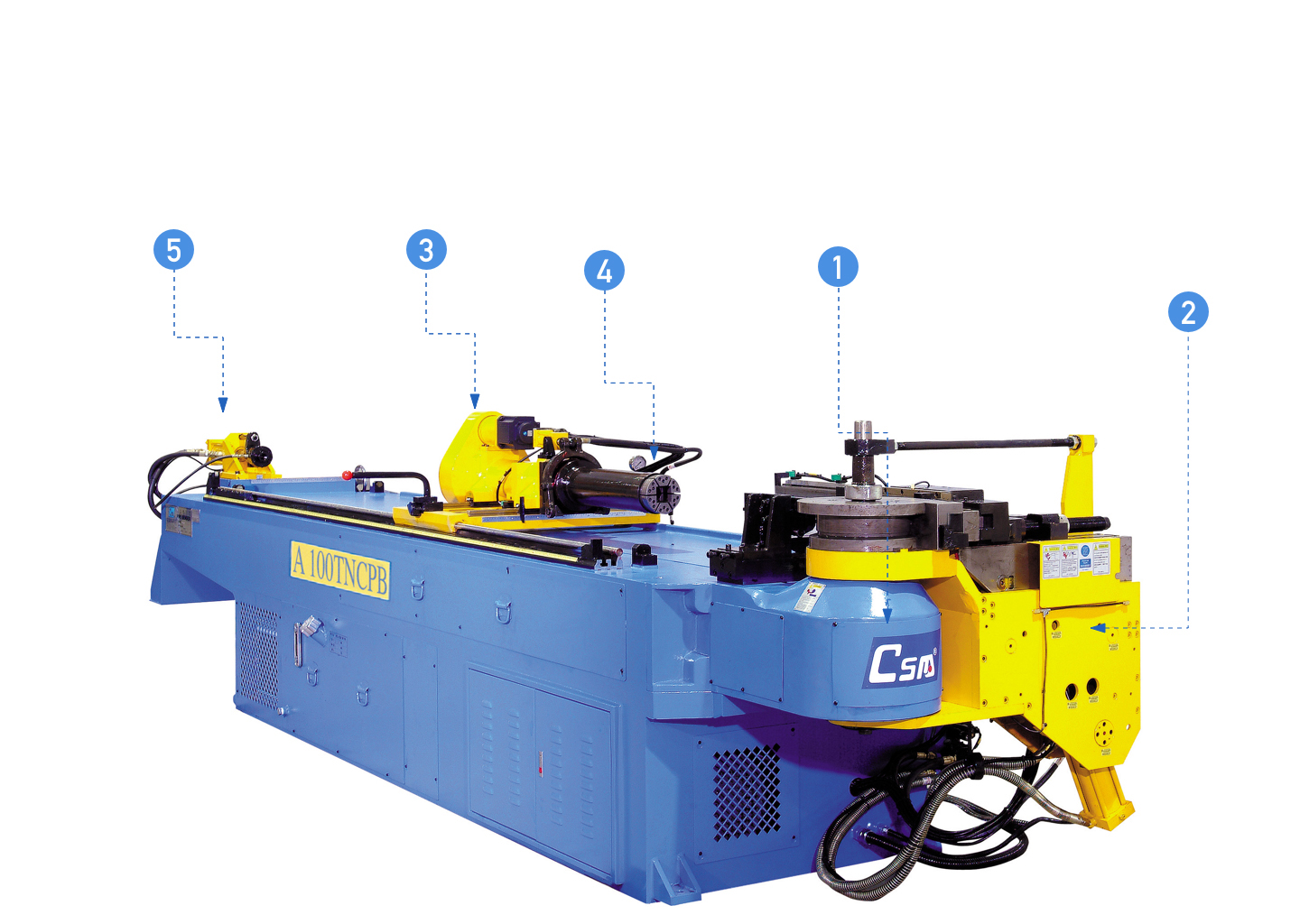

TNCPB
- bend-arm (C-axis) by hydraulic
-
- clamp die by hydraulic
- pressure die by hydraulic
- side booster by hydraulic
- carriage (Y-axis) by manual
- collet (B-axis) grip by hydraulic rotation by servo motor
- mandrel by hydraulic with automatic lubrication & anticipated retraction
-
- Controller :
- PLC controller with touch screen display
- programmable speed for servo axes
- with USB port, easy for data transfer
- convertible between manual / automatic mode
- convertible between inch / metric setting
|
NC Hidrolik TNCPB Boru Bükme Makinesi (manuel besleme ile)
|
|||||||
|
OD |
WT |
CLR |
mandrel working distance |
tooling capacity |
roll bending |
rear booster |
CSM part no. |
|
50.8
|
3
|
30-220
|
2100
|
1
|
|
|
50 TNCPB
|
|
76.2
|
3
|
40-250
|
2400
|
1
|
|
|
75 TNCPB
|
|
88.9
|
2.5
|
50-300
|
2600
|
1
|
|
|
89 TNCPB
|
|
101.6
|
5.5
|
60-400
|
3600
|
1
|
|
|
100 TNCPB
|
