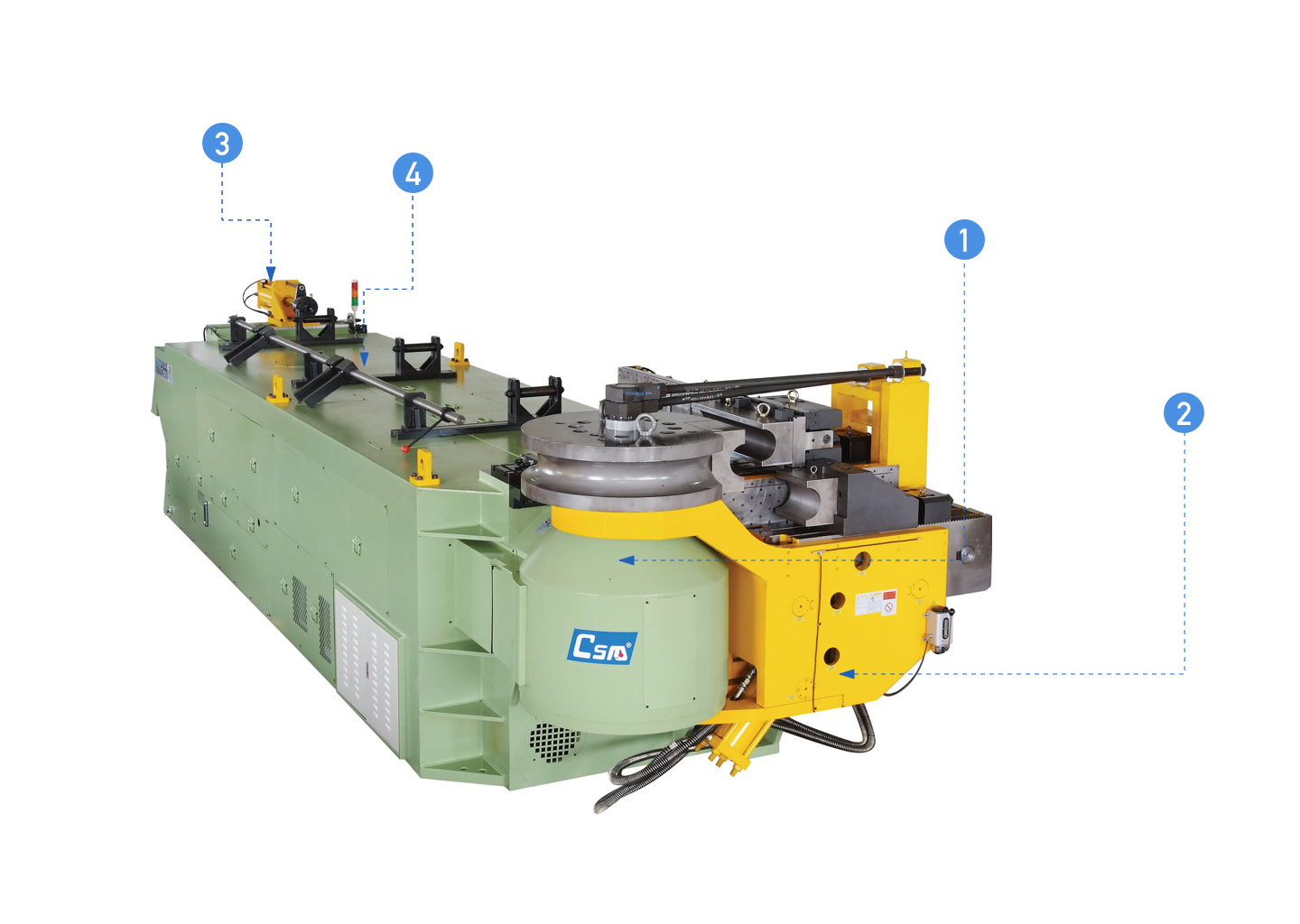

TNCB
- Bend-arm (C-axis) by hydraulic
-
- clamp die by hydraulic
- pressure die by hydraulic
- side booster by hydraulic
- mandrel by hydraulic with automatic lubrication & anticipated retraction
- mechanical stopper
-
- Controller :
- PLC controller with touch screen display
- programmable speed for servo axes
- with USB port, easy for data transfer
- convertible between manual / automatic mode
- convertible between inch / metric setting
|
NC Hidrolik Tek Eksenli TNCB Bükme Makinesi
|
|||||||
|---|---|---|---|---|---|---|---|
|
OD |
WT |
CLR |
mandrel working distance |
tooling capacity |
roll bending |
rear booster |
CSM part no. |
|
38.1
|
3
|
25-170
|
1900
|
1
|
|
|
38 TNCB
|
|
50.8
|
3
|
30-250
|
2200
|
1
|
|
|
50 TNCB
|
|
76.2
|
3
|
40-300
|
2600
|
1
|
|
|
75 TNCB
|
|
88.9
|
2.5
|
40-350
|
2600
|
1
|
|
|
89 TNCB
|
|
101.6
|
5.5
|
60-400
|
3600
|
1
|
|
|
100 TNCB
|
|
127
|
3.5
|
80-450
|
5200
|
1
|
|
|
120 TNCB
|
|
152.4
|
7
|
90-500
|
6000
|
1
|
|
|
150 TNCB
|
|
180
|
9
|
100-600
|
6000
|
1
|
|
|
180 TNCB
|
|
220
|
8
|
100-700
|
6000
|
1
|
|
|
220 TNCB
|
|
76.2
|
3
|
40-300
|
2600
|
1
|
|
hydraulic
|
75 TNCB-CBF
|
|
127
|
5.5
|
80-400
|
5200
|
1
|
|
hydraulic
|
120 TNCB-CBF
|
|
127
|
5.5
|
60-450
|
5200
|
1
|
|
hydraulic
|
120 TNCB-RBF
|
|
220
|
7
|
100-1000
|
6000
|
1
|
|
hydraulic
|
220 TNCB-RBF
|
