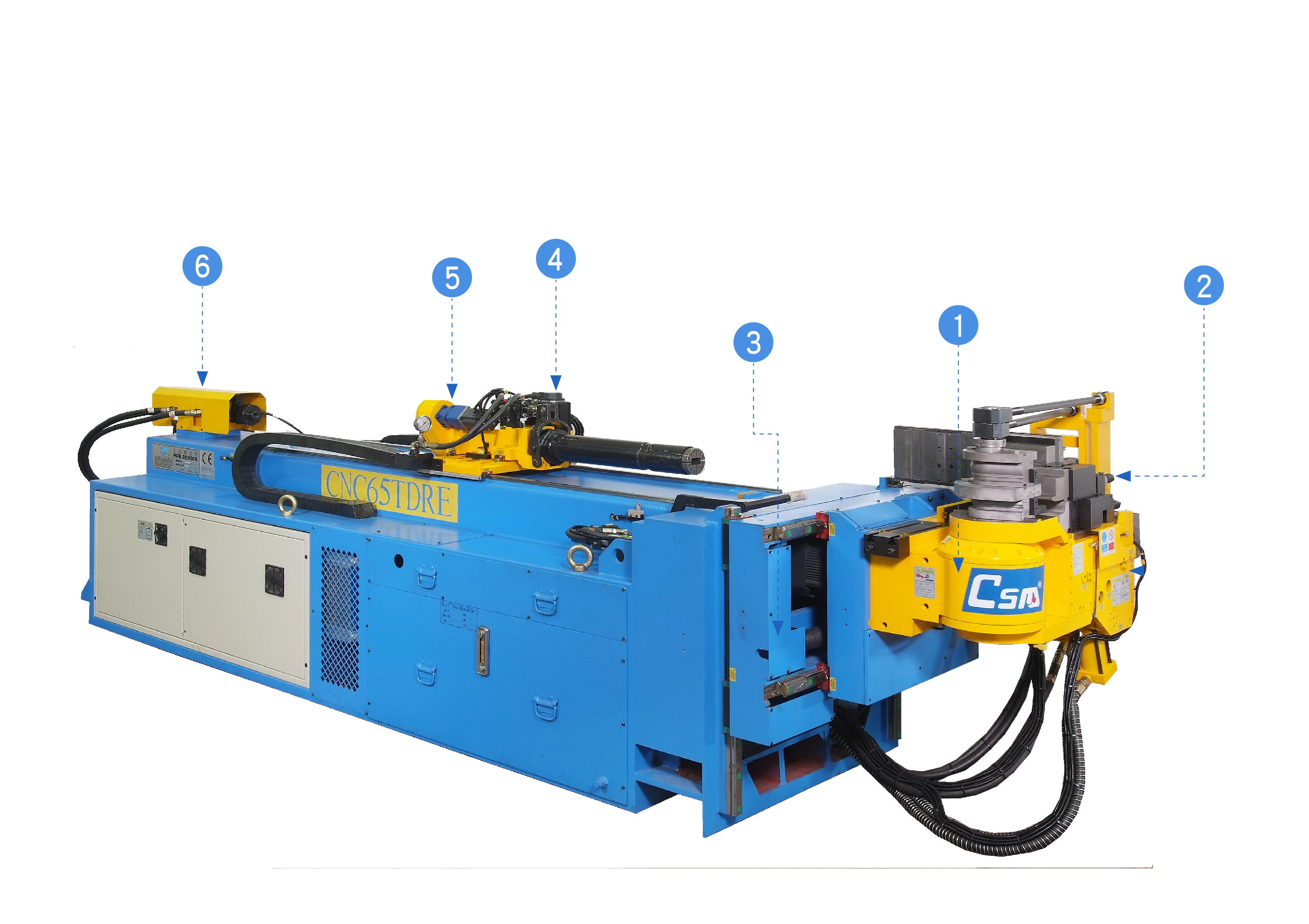

TDRE
- bend-arm (C-axis) by servo motor with exclusive transmission gears, tolerance within ±0.01°
-
- clamp die by hydraulic
- pressure die by hydraulic
- side booster by hydraulic
- tools/radii shifting :
- motion up-down by hydraulic
- motion left-right by servo motor
- carriage (Y-axis) by servo motor with programmable speed
- collet (B-axis) grip by hydraulic, rotation by servo motor
- mandrel by hydraulic with automatic lubrication & anticipated retraction
-
- Controller :
- Industrial PC assorted with touch-screen display, capable of bending simulation, 3D preview and interference detection
- programmable speed for servo axes
- with USB port, easy for data transfer
- convertible between manual / automatic mode
- convertible between inch / metric setting
- convertible between XYZ / YBC axes
- capable of reading igs/stp file
|
CNC Elektrikli Hibrit TDRE Boru Bükme Makinesi
|
|||||||
|
OD |
WT |
CLR |
mandrel working distance |
tooling capacity |
roll bending |
rear booster |
CSM part no. |
|
12
|
1
|
12-55
|
1000
|
2
|
|
|
12 TDRE
|
|
18
|
1.6
|
10-80
|
1200
|
2
|
|
|
18 TDRE
|
|
25.4
|
1.5
|
15-120
|
1500
|
2
|
|
|
25 TDRE
|
|
30
|
2
|
15-120
|
2200
|
2
|
|
|
30 TDRE
|
|
38.1
|
1.8
|
25-150
|
2200
|
2
|
|
|
38 TDRE
|
|
50.8
|
2
|
30-220
|
2500
|
2
|
|
|
50 TDRE
|
|
65
|
2
|
35-250
|
2500
|
2
|
|
|
65 TDRE
|
|
80
|
2.5
|
40-280
|
3500
|
2
|
|
|
80 TDRE
|
|
100
|
3
|
30-300
|
3500
|
2
|
|
|
100 TDRE
|
|
65
|
2.5
|
35-250
|
2500
|
2
|
|
servo
|
65 TDRE-RBE
|
|
80
|
2.8
|
40-280
|
3500
|
2
|
|
servo
|
80 TDRE-RBE
|
|
100
|
3.6
|
30-300
|
3500
|
2
|
|
servo
|
100 TDRE-RBE
|
