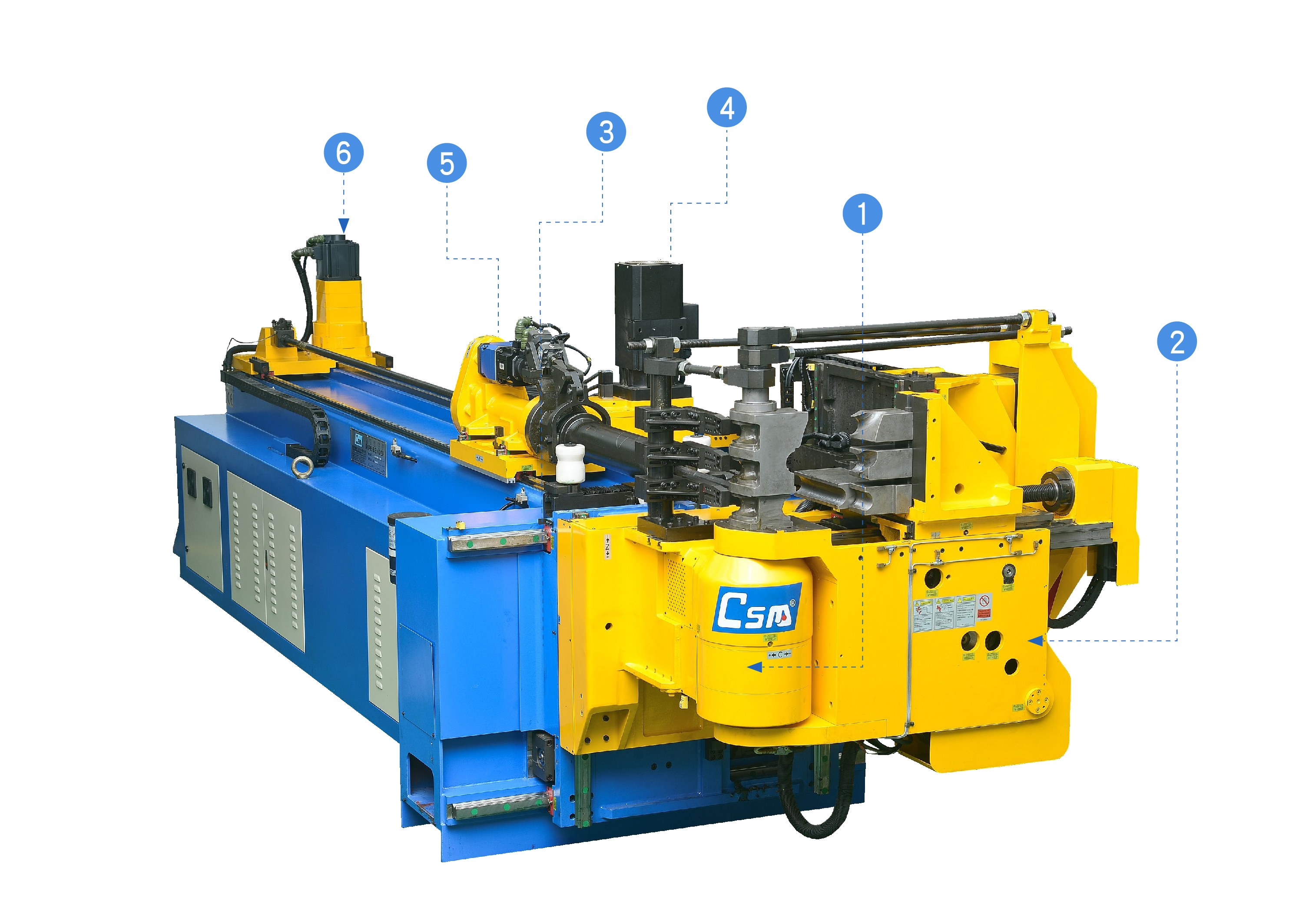

MRE2-RBE
- bend-arm (C-axis) by servo motor with exclusive transmission gears
-
- clamp die by servo motor
- pressure die by servo motor
- side booster by servo motor
-
- tools/radii shifting :
- motion up-down by servo motor
- motion left-right by servo motor
- carriage (Y-axis) by servo motor with programmable speed
- collet (B-axis) grip by pneumatic rotation by servo motor
- mandrel by servo motor with automatic lubrication & anticipated retraction
-
- Controller :
- Industrial PC assorted with touch-screen display, capable of bending simulation, 3D preview and interference detection
- programmable speed for servo axes
- with USB port, easy for data transfer
- convertible between manual / automatic mode
- convertible between inch / metric setting
- convertible between XYZ / YBC axes
- capable of reading igs/stp file
|
CNC Tam Elektrikli MRE2-RBE Boru Bükme Makinesi
|
|||||||
|
OD |
WT |
CLR |
mandrel working distance |
tooling capacity |
roll bending |
rear booster |
CSM part no. |
|
50.8
|
1.8
|
30-150
|
2500
|
3
|
yes
|
servo
|
50 MRE2-RBE
|
|
80
|
2.5
|
40-230
|
3000
|
3
|
yes
|
servo
|
80 MRE2-RBE
|
|
100
|
3.6
|
30-300
|
3000
|
3
|
yes
|
servo
|
100 MRE2-RBE
|
