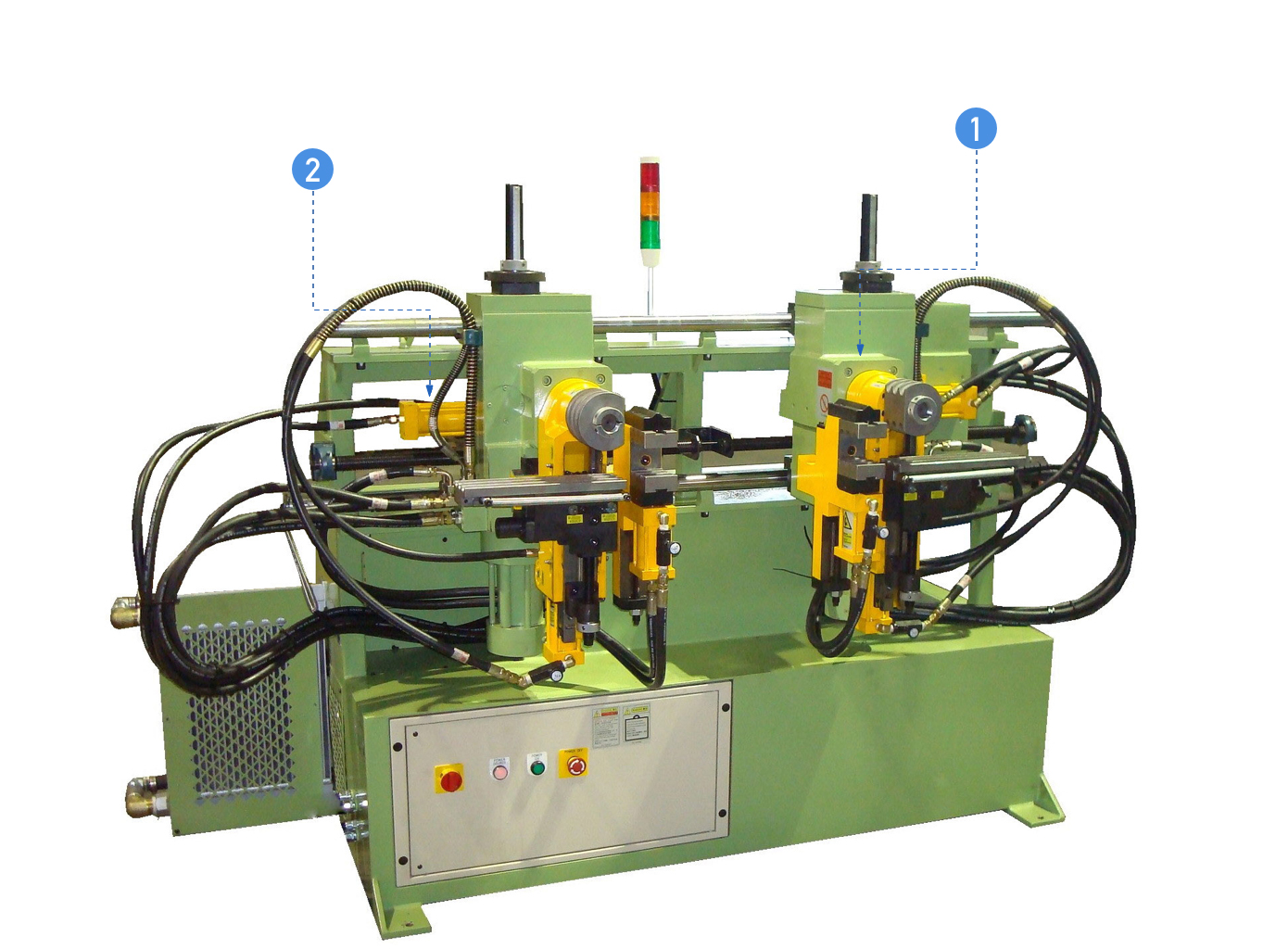

Single axis
-
- bending by hydraulic
- clamp die by hydraulic
- pressure die by hydraulic
- head pusher facilitate fast unloading
Multiple axes
-
- bending by hydraulic
- clamp die by hydraulic
- pressure die by hydraulic
- feeding by servo motor
- grip by hydraulic, rotation by servo motor (-5A)
| round tube |
working distance |
tools stack |
multi- plane |
axes |
CSM Part no. |
|||||
| OD | WT | CLR | OD=19 | OD=25 | OD=32 | OD=38 | ||||
| 38.1 | 2.5 | 38-180 | 170-1500 | 3-4 | 2-3 | 1-2 | 1 | 1 | F38 | |
| 50 | 2 | 40-250 | 200-2300 | 4-5 | 3-4 | 2-3 | 1-2 | 1 | F50 | |
| 38.1 | 2.5 | 38-180 | 170-1500 | 3-4 | 2-3 | 1-2 | 1 | manual | 1 | F38-90 |
| 38 | 2.5 | 38-180 | 250-4200 | 3-4 | 2-3 | 1-2 | 1 | 2 | F38H-4A | |
| 38 | 2.5 | 38-180 | 320-4200 | 3-4 | 2-3 | 1-2 | 1 | automatic | 3 | F38H-5A |
