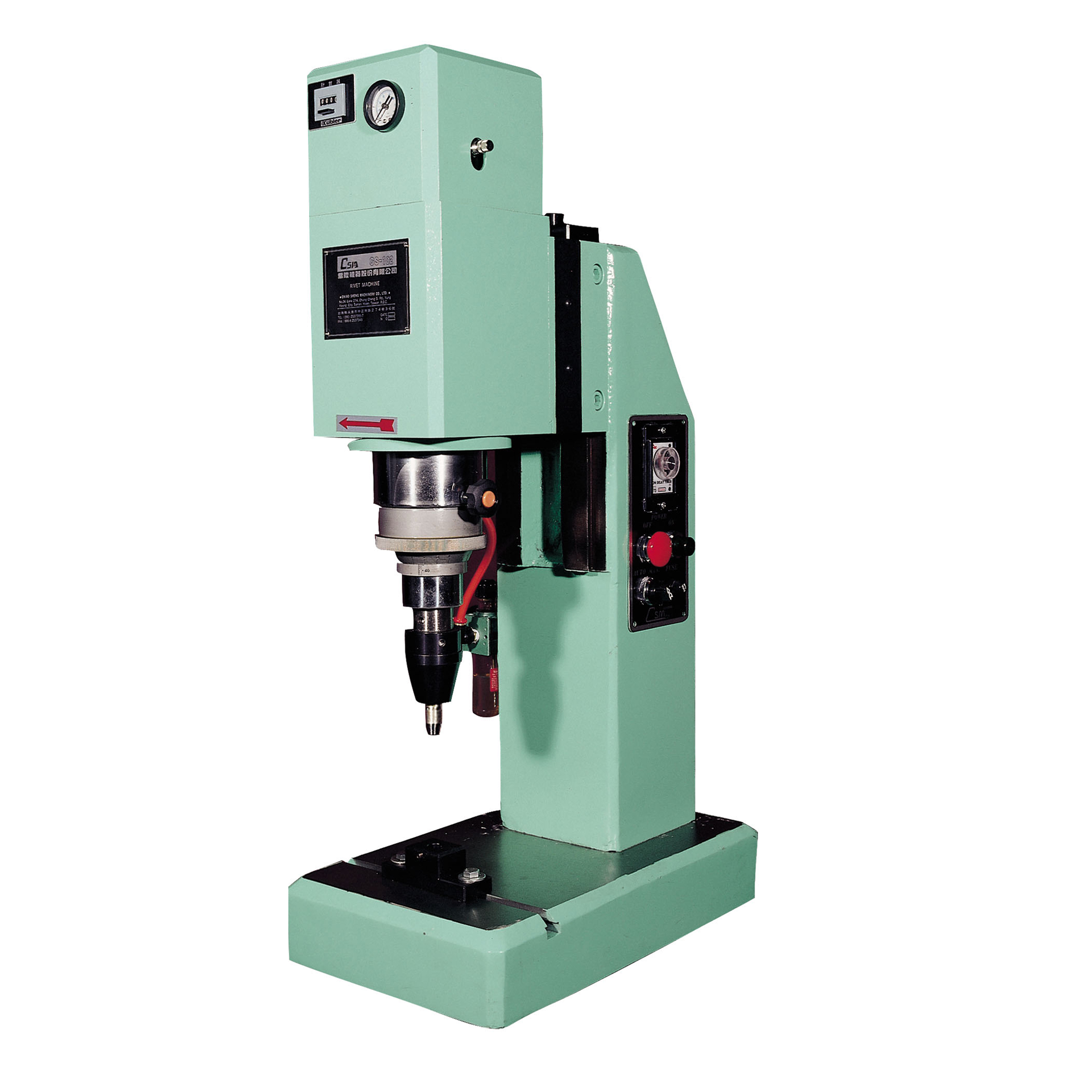

CS-102
Pneumatic-driven
Max capacity : Solid = OD 6mm
Hollow = OD 10mm
Max stroke : 40mm
Rivetting pressure : 1~7 kg/cm²
Total power : 1/4 HP
Dimension : L460*W280*H750mm
Weight : 100kg
CS-150A
Hydraulic-driven
Max capacity : Solid = OD 10 mm
Hollow = OD 15 mm
Max stroke : 35mm
Rivetting pressure : 10~70 kg/cm²
Total power : 1 ½ HP
Dimension : L700*W450*H1630mm
Weight : 320kg
CS-180A
Hydraulic-driven
Max capacity : Solid = OD 15 mm
Hollow = OD 20 mm
Max stroke : 35mm
Rivetting pressure : 10~100 kg/cm²
Total power : 3 HP
Dimension : L800*W600*H1670mm
Weight : 400kg
